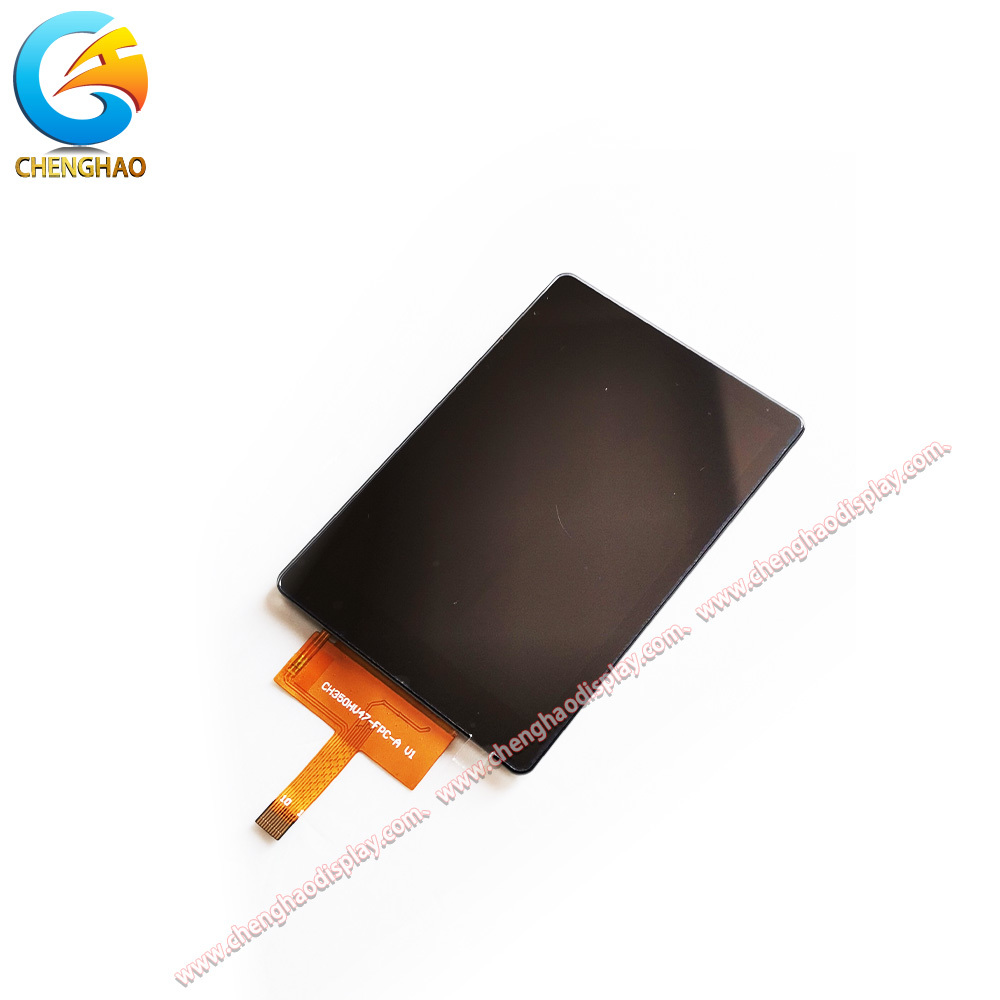

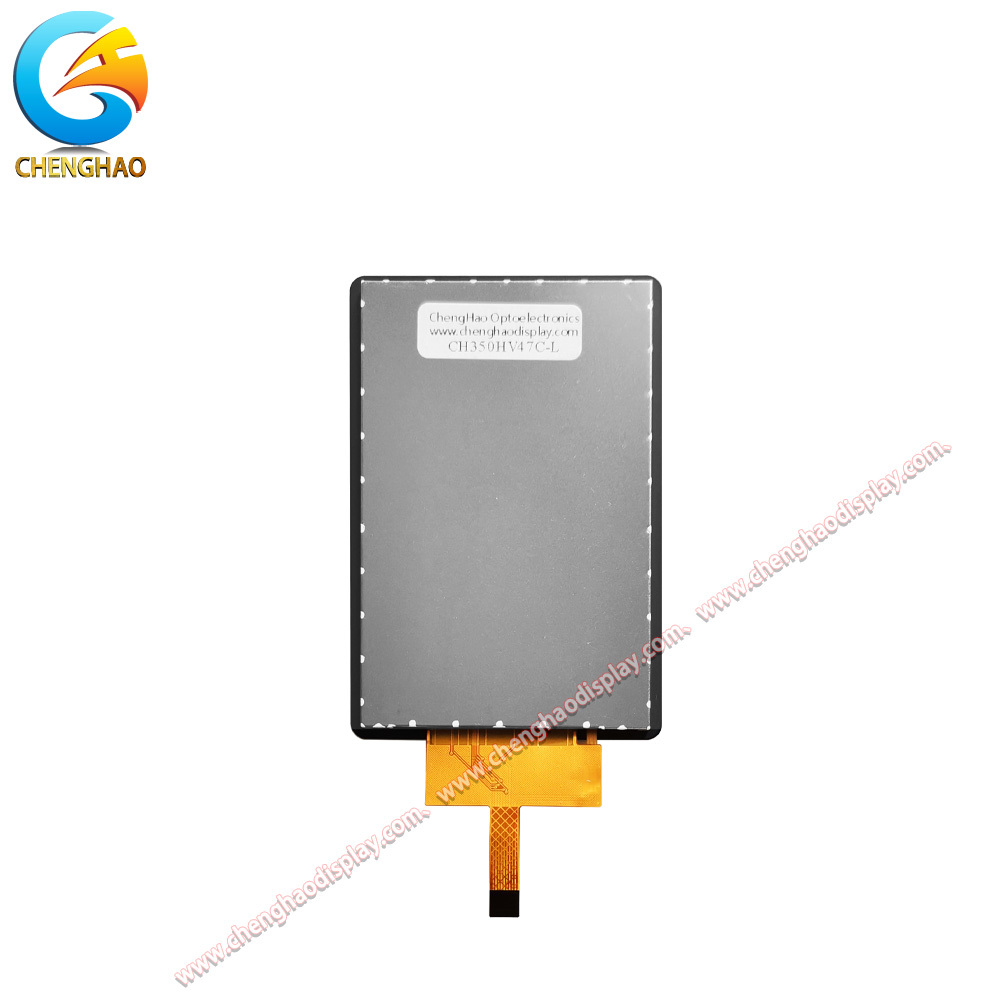

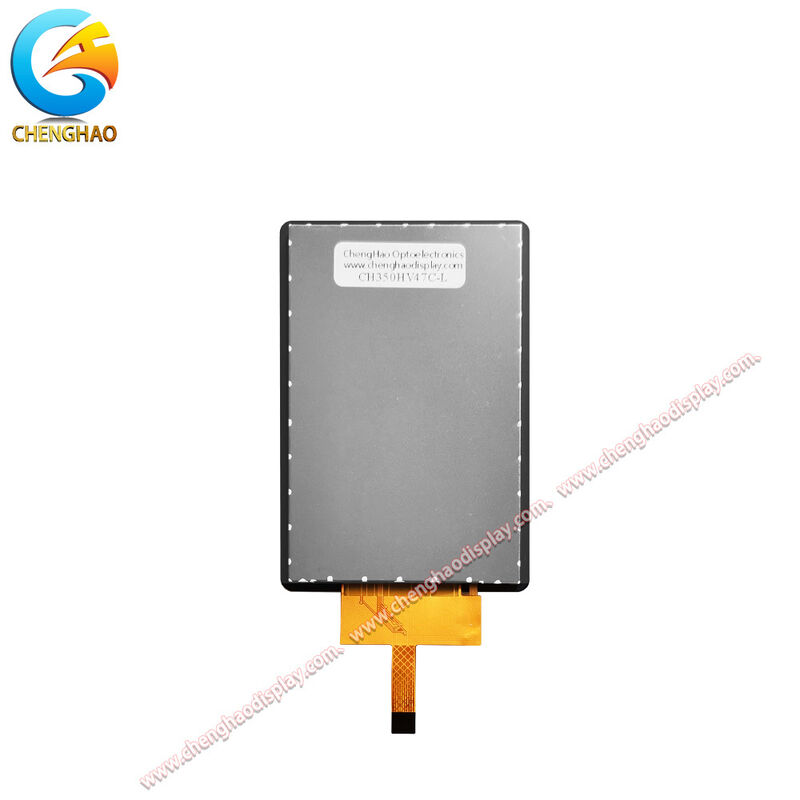

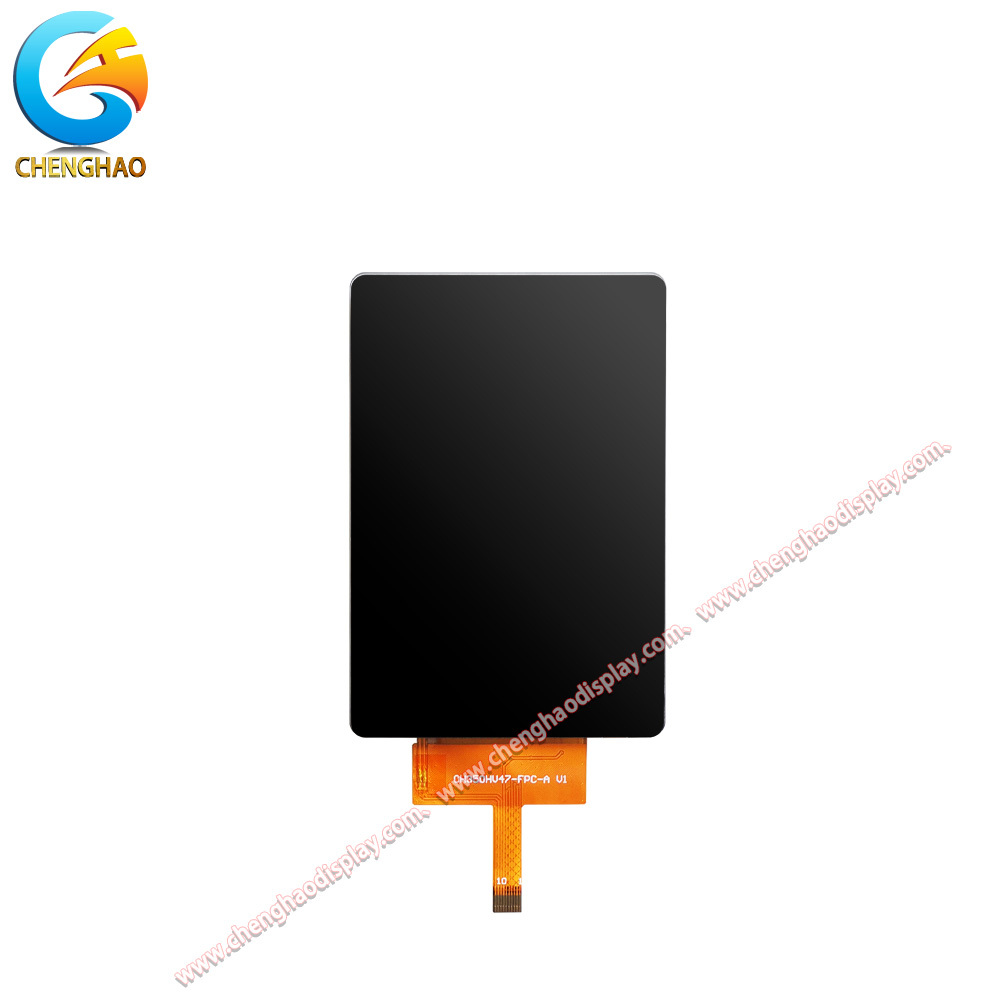

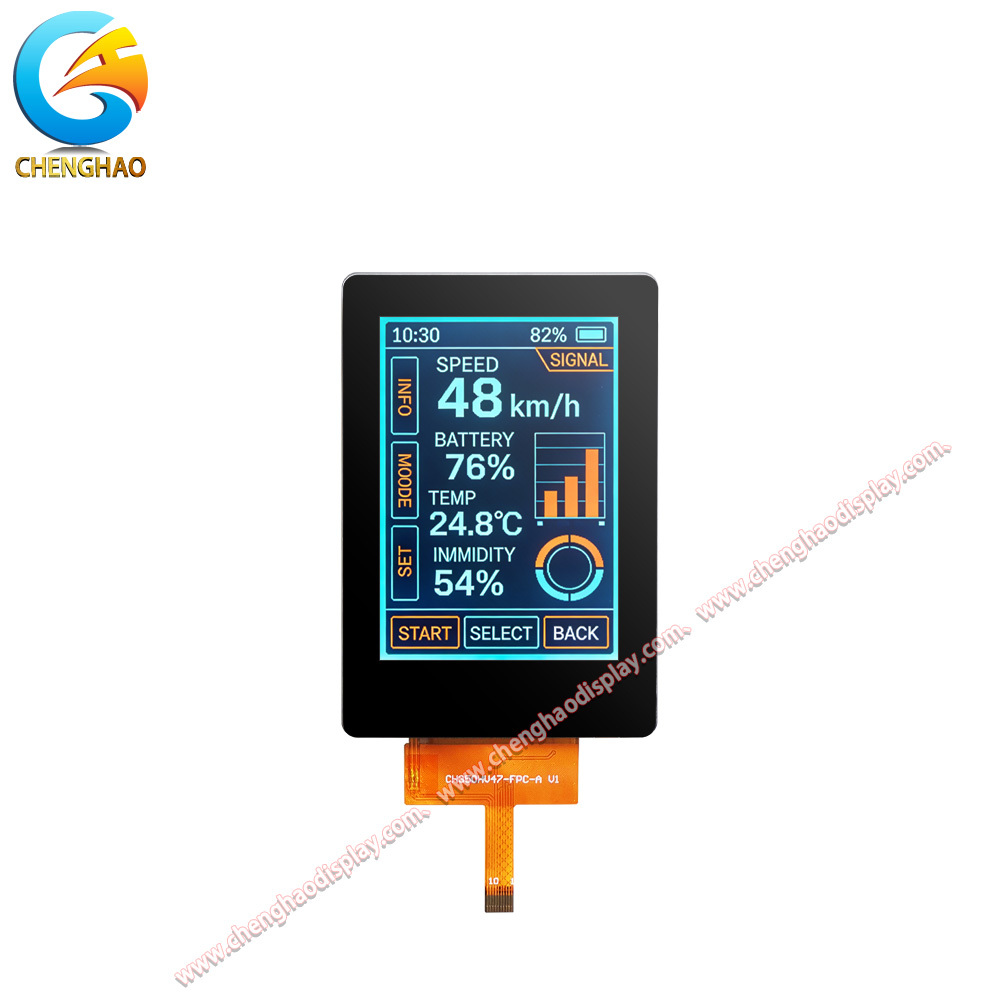

CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover

Min Bestellmenge : 100 STÜCK Preis : Contact us for quotation
Verpackung Informationen : Standard-Exportpaket Lieferzeit : 7-15 Werktage
Zahlungsbedingungen : T/T Versorgungsmaterial-Fähigkeit : 300.000 Stück/Monat
Herkunftsort: China Markenname: chenghao optoelectronic
Zertifizierung: RoHS & CE & FCC Modellnummer: CH350HV47C-L
Dokument: Produktbroschüre PDF

Detailinformationen

Modul-Nr: CH350HV47C-L Anzeigemodus: IPS / Transmissiv / Normalerweise Schwarz
Bildschirmgröße: 3,5 Zoll Auflösung: 320 x 480 Punkte
Blickrichtung: 80/80/80/80 Bildschirmhelligkeit: 800 cd/m2 (Min.)
Modulschnittstelle: SPI FPC-Pin-Nummern: 10
Betriebstemperatur: -25 ° C bis +70 ° C. Lagertemperatur: -30°C bis +80°C
Modulgröße: 58,00 x 86,00 x 4,10 mm Größe des aktiven Bereichs: 480,96 x 73,44 mm

Produkt-Beschreibung

Product Description The CH350HV47C-L is a 3.5 inch IPS TFT LCD display module with a 320 x 480 pixel resolution and full 80/80/80/80 viewing angles. Its transmissive, normally black panel delivers a minimum brightness of 800 cd/m² through a 10-pin SPI interface. The module combines a 2.1 mm TFT assembly with a 1.8 mm glass cover lens and 0.2 mm optical adhesive for a total thickness of approximately 4.1 mm. The active area measures 48.96 x 73.44 mm, and the outline is 58.00 x
