LCD-Fabrik 3,5 Zoll eigene kleine Tft-Lcd-Anzeige mit Kapazitäts-Touch
ContPerson : Tina Fu
Telefonnummer : +86 755-27806536
- Was ist? : +8615919862398
| Min Bestellmenge : | 100 STÜCK | Preis : | Contact us for quotation |
|---|---|---|---|
| Verpackung Informationen : | Standard-Exportpaket | Lieferzeit : | 7-15 Werktage |
| Zahlungsbedingungen : | T/T | Versorgungsmaterial-Fähigkeit : | 300.000 Stück/Monat |
| Herkunftsort: | China | Markenname: | chenghao optoelectronic |
|---|---|---|---|
| Zertifizierung: | RoHS & CE & FCC | Modellnummer: | CH104SV02A |
| Dokument: | Produktbroschüre PDF |
|
Detailinformationen |
|||
| Modul-Nr: | CH104SV02A | Anzeigemodus: | TN / Transmissiv / Normalerweise Weiß |
|---|---|---|---|
| Bildschirmgröße: | 10,4 Zoll | Auflösung: | 800 x 600 Punkte |
| Blickrichtung: | 12 Uhr | Bildschirmhelligkeit: | 300 cd/m² (typ.) |
| Modulschnittstelle: | LVDS | FPC-Pin-Nummern: | 20 |
| Betriebstemperatur: | -20°C bis +70°C | Lagertemperatur: | -30°C bis +80°C |
| Modulgröße: | 236,00 x 176,90 x 5,60 mm | Größe des aktiven Bereichs: | 211,20 x 158,40 mm |
Produkt-Beschreibung

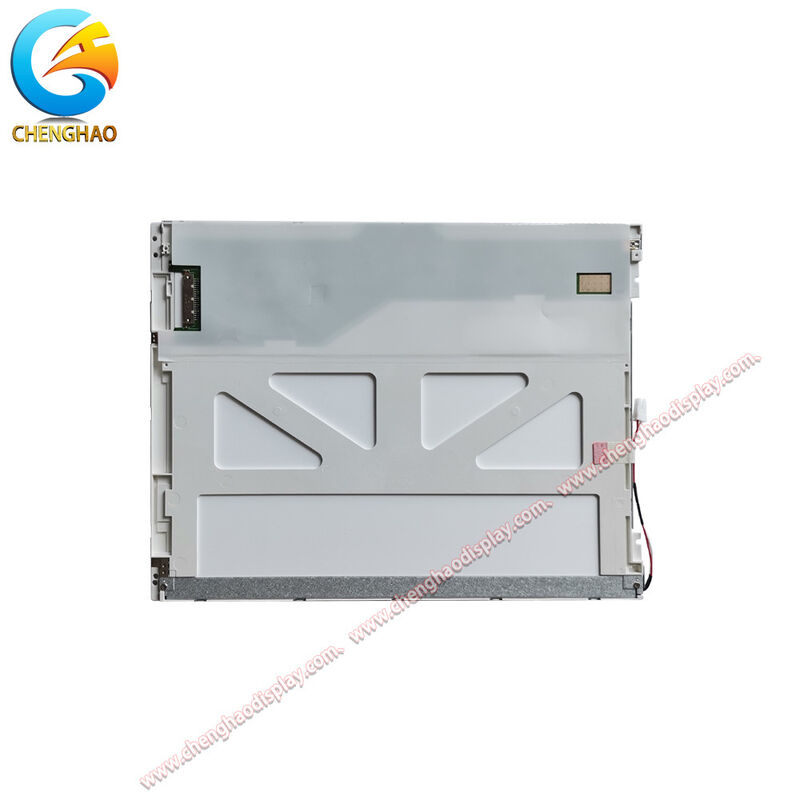

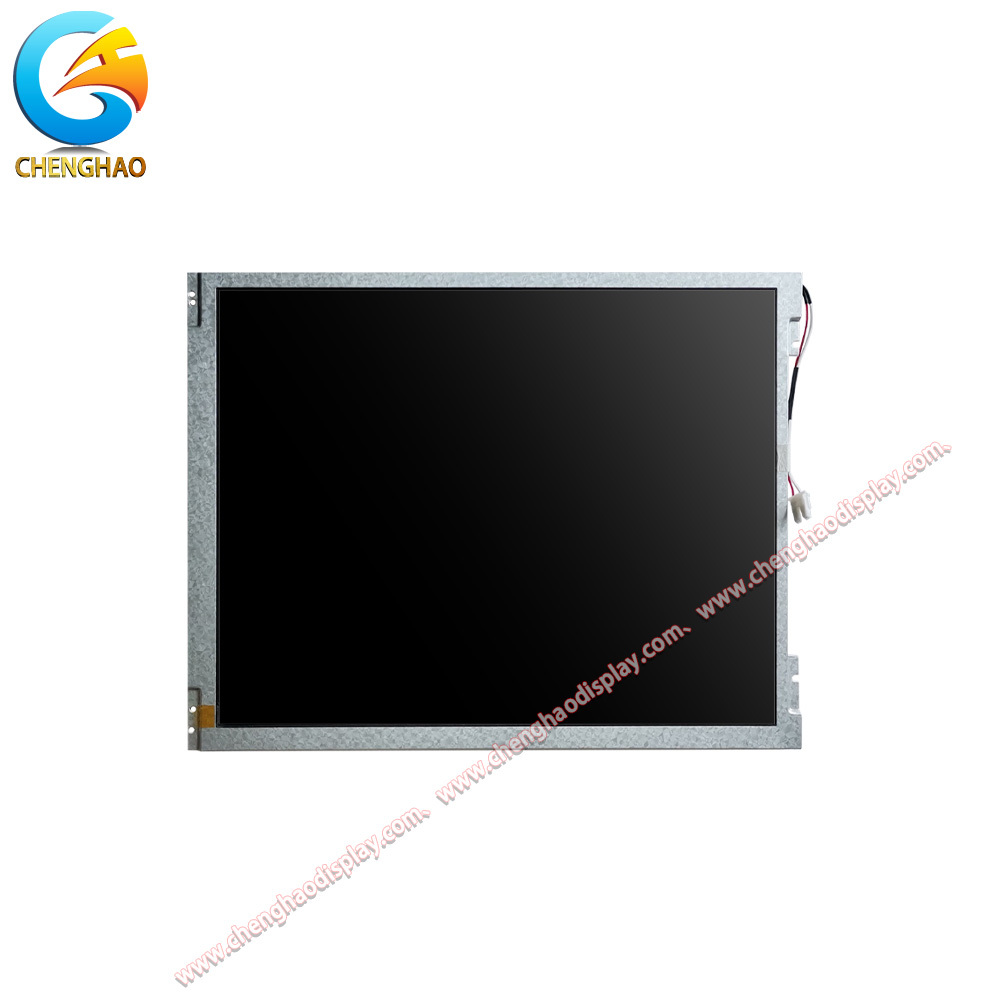

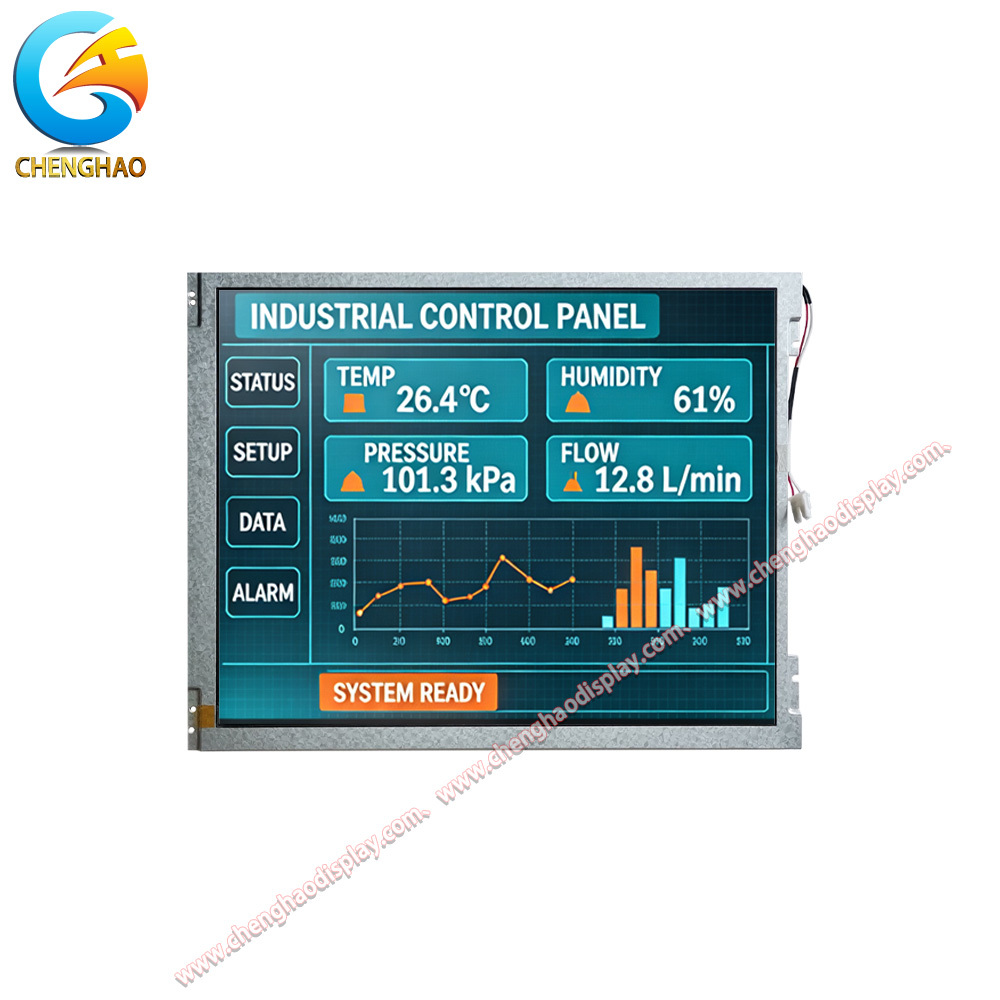

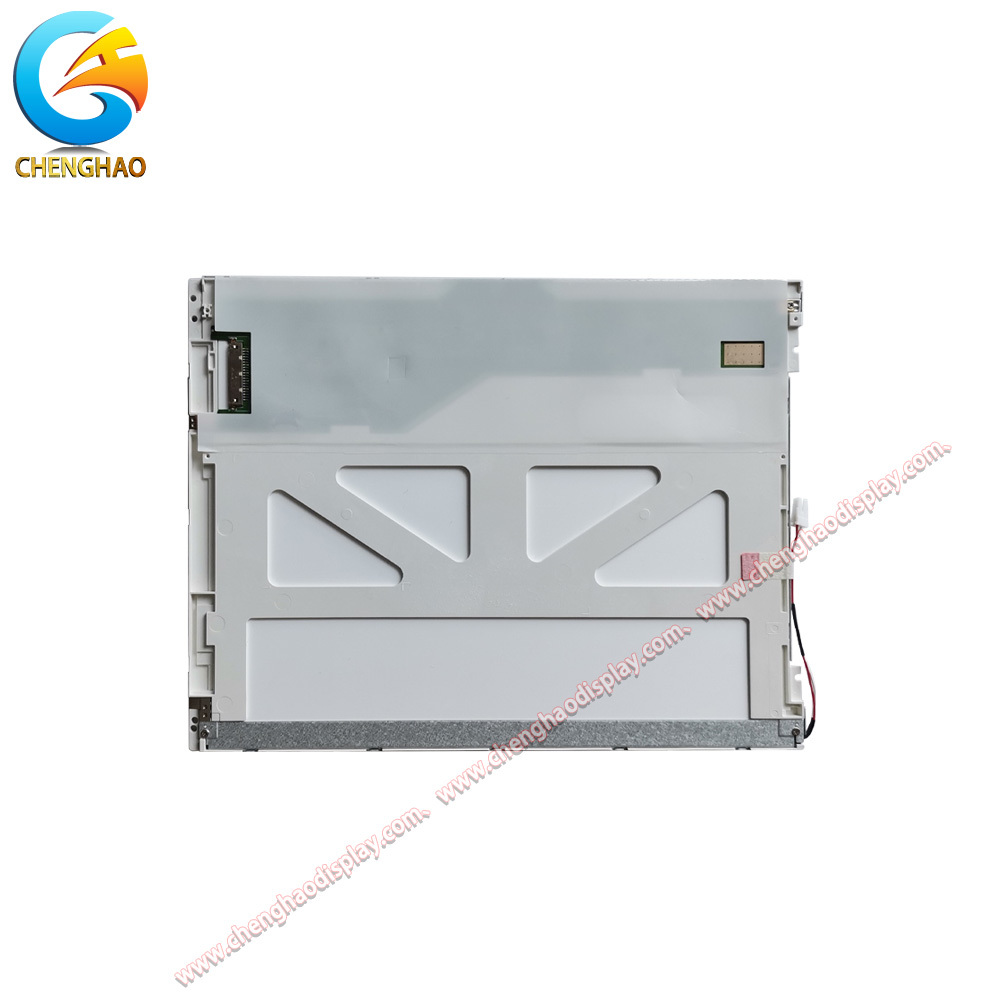

Product Description The CH104SV02A is a 10.4 inch TFT LCD display module with an 800 x 600 pixel resolution and a 12 o'clock viewing direction. It provides a typical brightness of 300 cd/m² through an LVDS interface, making it suitable for industrial control and embedded display systems. The active area measures 211.20 x 158.40 mm, while the module outline is 236.00 x 176.90 x 5.60 mm. It operates from -20°C to +70°C and can be stored from -30°C to +80°C. The transmissive, TN
